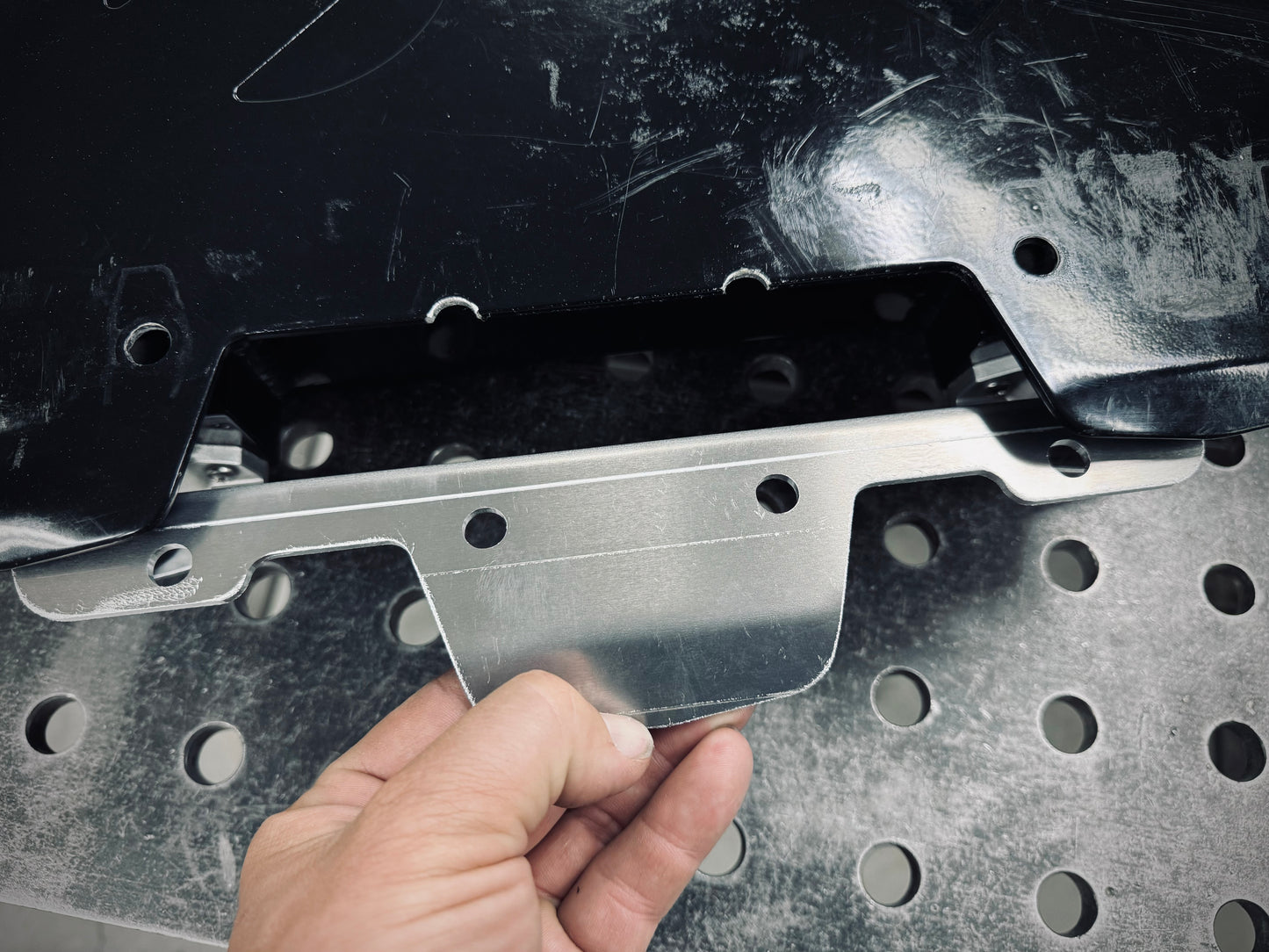

1 - remove all plastic female LinQ mounts, and align the new centre mount LinQ bracket with previous holes on the top side of the juice caboose shown in the pictures. Use the included hardware to snug down and hold in place while using it as a drilling template. You'll notice 1/2 of the diameter of the hole material needs to be removed.

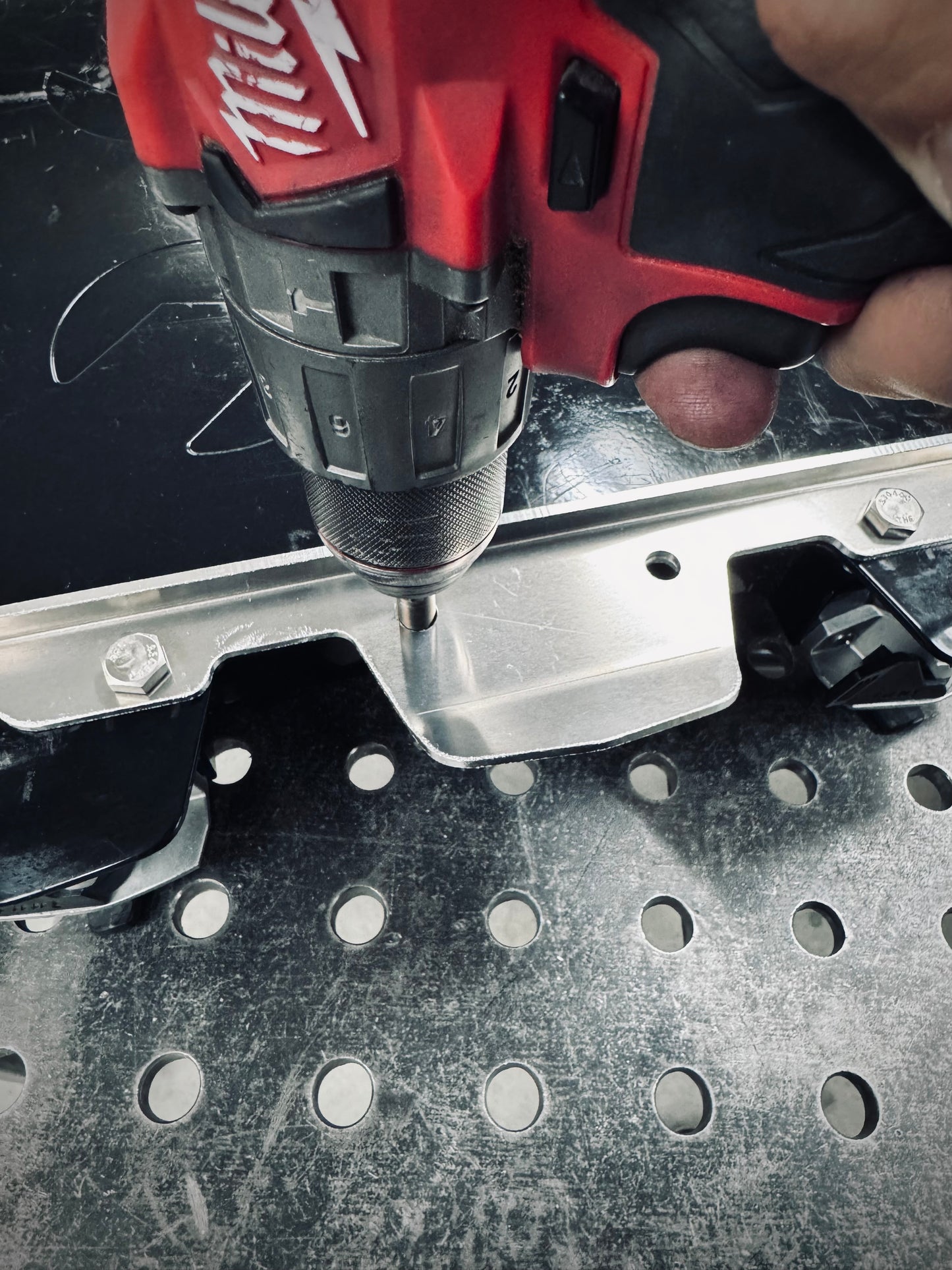

2 - Making sure your juice caboose cap is installed so no debris can go in the tank, using a 25/64 drill and bit, drill out the material to allow the pass thru of the LinQ fasteners and mounting hardware . Unbolt the centre mount bracket, and file / sand the additional material to a clean, and slightly oversized clearance.

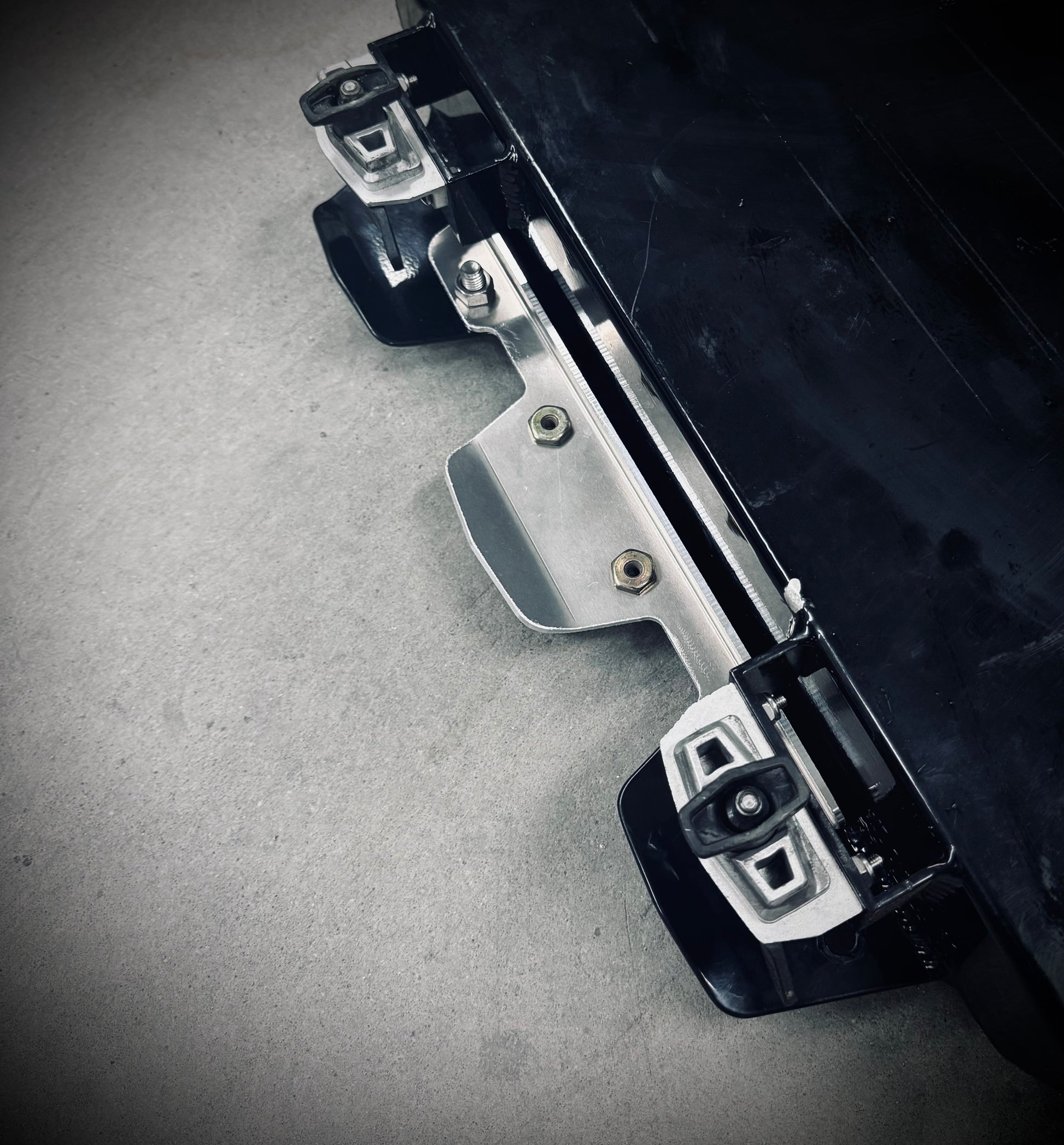

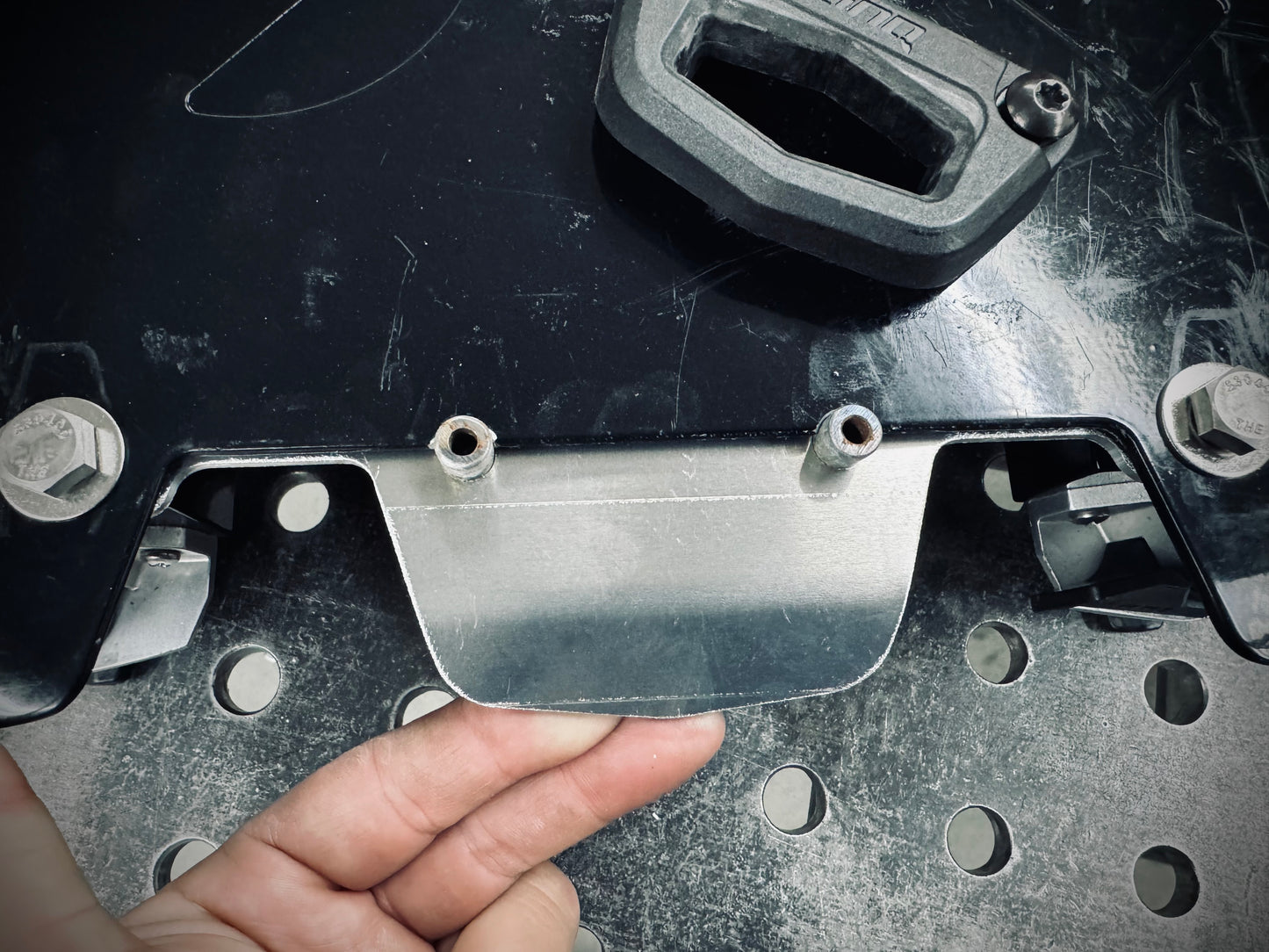

3 - Place the centre mount bracket on the underside of the Juice Caboose, and align the two outer holes with the factory juice caboose LinQ holes and place the included hardware thru, with the oval pan head on top side of cell, with nut and washer on the bottom. Do not tighten just yet. Place the LinQ gold coloured hardware thru the bottom side of the centre mount bracket making sure it passes thru the area that was just drilled out and filed in step 2. If more filing or drilling needed to remove more material, now is the time. Once all lines up, and fasteners pass thru, tighten up the included hardware , with the centre mount LinQ at the same time.

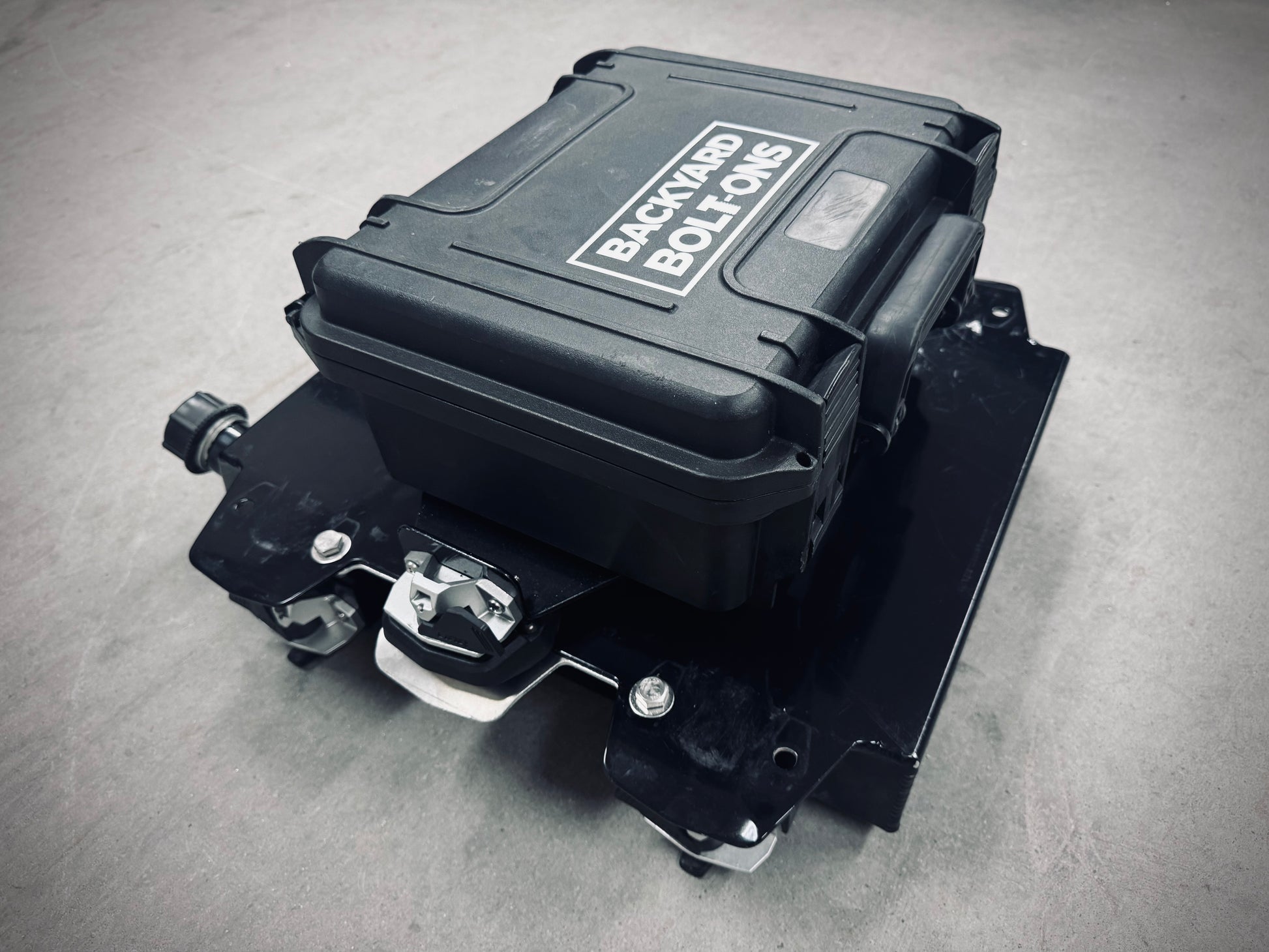

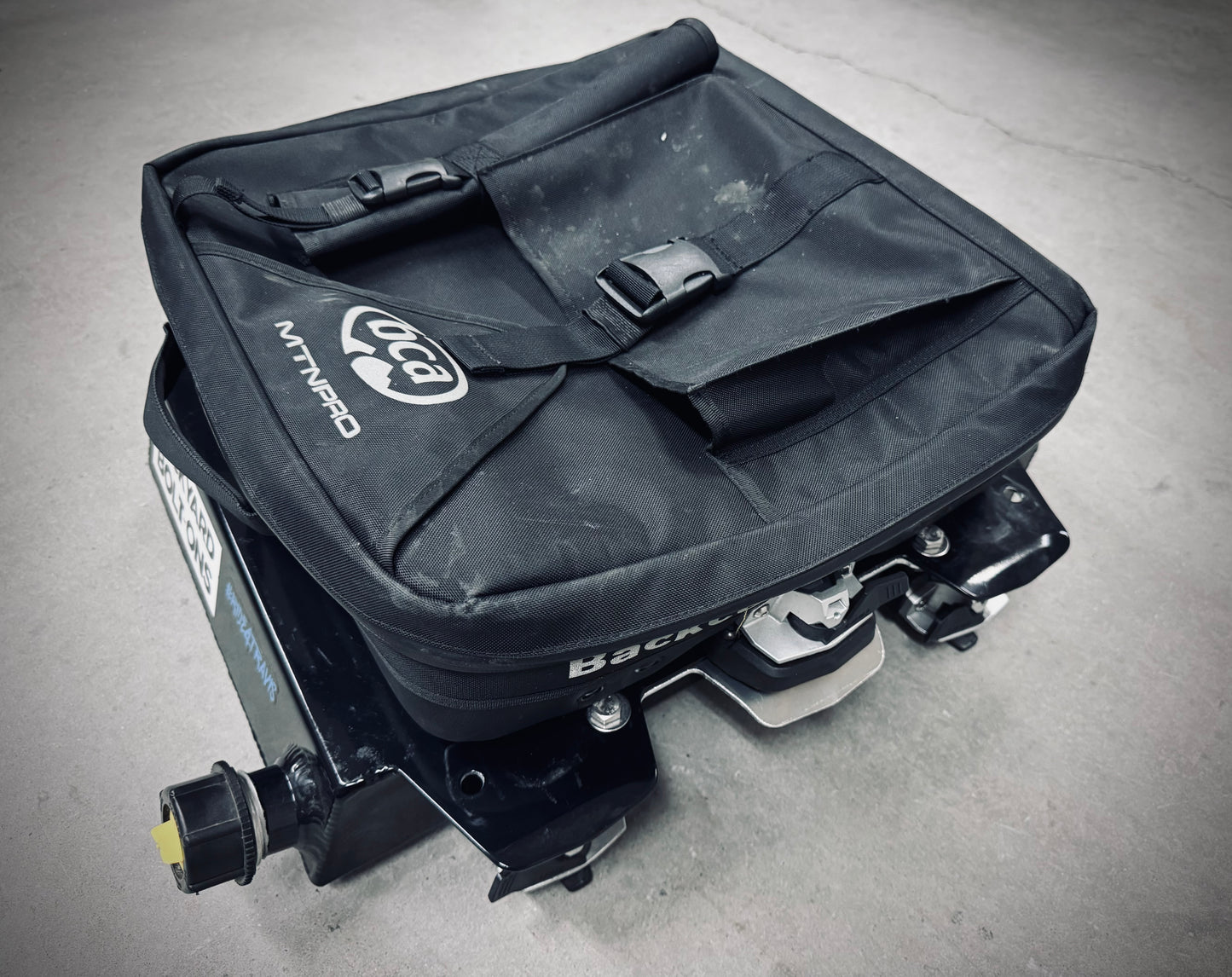

Test fit, ready to rock.
